The Complete Guide to LCD Technology
Exploring the design, manufacturing, and innovations behind the modern lcd screen that powers our digital world.
Introduction to LCD Technology
Liquid Crystal Display (LCD) technology has revolutionized visual interfaces, becoming the foundation of modern display systems. From smartphones to large-scale monitors, the lcd screen has become ubiquitous in our daily lives, offering energy efficiency, slim profiles, and excellent image quality.
Innovative Technology
LCD technology continues to evolve, offering higher resolutions, better color reproduction, and improved energy efficiency in every generation of lcd screen.
Advanced Manufacturing
The production of TFT LCD displays involves sophisticated processes requiring precision engineering and advanced materials science.
Future Innovations
Ongoing research continues to push the boundaries of what's possible with LCD technology, ensuring the lcd screen remains competitive in the display market.
Liquid Crystal Display Design and Driving
The design of an lcd screen involves several critical components working together to produce high-quality images. At its core, an LCD consists of liquid crystal material sandwiched between two glass substrates, with electrodes and polarizing filters that control the light passing through.lcd screen stains.
The driving mechanism of an lcd screen is responsible for controlling the voltage applied to each pixel. This voltage determines the orientation of the liquid crystal molecules, which in turn controls the amount of light passing through to create the desired image.
Modern LCD drivers use sophisticated integrated circuits that can precisely control millions of pixels. These driver ICs receive digital image data and convert it into analog voltages that drive the liquid crystal cells. The driver circuitry must operate at high speeds to refresh the display quickly enough to prevent motion blur.
One of the key design considerations for an lcd screen is ensuring uniform backlighting. This is typically achieved using LED arrays positioned either along the edges (edge-lit) or behind the entire display (direct-lit). The backlight design significantly impacts the display's brightness, power consumption, and thickness.
The design process also involves optimizing the color filters to ensure accurate color reproduction. Each pixel in a color lcd screen consists of three sub-pixels (red, green, and blue) with corresponding color filters that allow only specific wavelengths of light to pass through.
Display designers must balance various factors including resolution, refresh rate, power consumption, and cost when developing a new lcd screen. Advanced design techniques have led to innovations such as high dynamic range (HDR) displays, which offer improved contrast ratios and a wider color gamut.

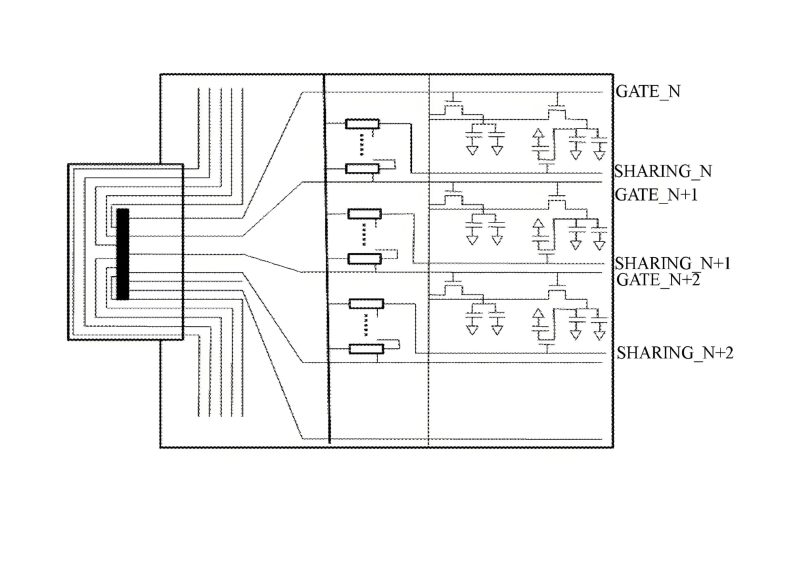

LCD Driver Architecture
The block diagram illustrates the key components of an LCD driver system, including data processing, timing control, and pixel driving circuits.
LCD Working Modes and Display Structure
An lcd screen operates based on the unique properties of liquid crystals, which can change their orientation in response to an electric field, thereby controlling the passage of light. There are several working modes that define how liquid crystals behave within an LCD, each with distinct characteristics.lcd display screen.
The Twisted Nematic (TN) mode is one of the most common, where liquid crystal molecules twist 90 degrees between the two substrates in their natural state. When voltage is applied, they untwist, altering the polarization of light passing through. TN displays offer fast response times but have limited viewing angles, making them suitable for certain applications of lcd screen technology.
In-Plane Switching (IPS) mode aligns liquid crystal molecules parallel to the substrates. When voltage is applied, they rotate within the plane, providing superior color reproduction and wider viewing angles compared to TN displays. This makes IPS technology popular for high-end monitors and professional-grade lcd screen applications where color accuracy is critical.
Vertical Alignment (VA) mode features liquid crystals aligned perpendicular to the substrates. When voltage is applied, they tilt to control light passage, offering high contrast ratios and good viewing angles. VA panels strike a balance between TN and IPS technologies, providing a compromise between response time, color accuracy, and cost in an lcd screen.
The basic structure of an lcd screen includes several layers: a backlight, bottom polarizer, thin-film transistor (TFT) array, liquid crystal layer, color filter array, and top polarizer. Each layer plays a critical role in the display's operation, from generating light to controlling individual pixels. The precise arrangement and interaction of these layers determine the overall performance characteristics of the LCD.
TN Mode
Fast response, lower cost, limited viewing angles
IPS Mode
Superior color, wide viewing angles, slower response
VA Mode
High contrast, balanced performance characteristics
LCD Layer Structure
- Backlight Unit (BLU)
- Bottom Polarizing Filter
- Thin-Film Transistor (TFT) Array Substrate
- Liquid Crystal Layer
- Color Filter Array Substrate
- Top Polarizing Filter
TFT LCD Manufacturing Process
The production of a TFT LCD involves a highly sophisticated, multi-step manufacturing process requiring extreme precision and cleanroom environments to ensure the quality of the final lcd screen.lcd screen replacement
Substrate Preparation
The manufacturing process begins with high-quality glass substrates, typically made from alumino-borosilicate glass for its thermal stability and flatness. These substrates are thoroughly cleaned using a series of chemical and ultrasonic baths to remove any contaminants that could affect the lcd screen performance.
TFT Array Fabrication
The thin-film transistor (TFT) array is created using photolithography, deposition, and etching processes. A series of thin films (including gate metal, active layer, source/drain metal, and pixel electrodes) are deposited onto the glass substrate and patterned to form the complex circuitry that controls each pixel in the lcd screen.
Color Filter Formation
On a separate substrate, red, green, and blue color filters are applied in a precise pattern corresponding to the pixel layout. This is typically done using photolithography for each color, creating the sub-pixel structure that enables full-color reproduction in the final lcd screen.
Cell Assembly
The TFT array substrate and color filter substrate are carefully aligned and bonded together with a precise gap between them. This gap is maintained using spacer beads that ensure uniform cell thickness. A sealant is applied around the perimeter to form a closed cell, which is then filled with liquid crystal material through a vacuum filling process critical to the lcd screen's performance.
Module Assembly
After cell assembly, polarizing filters are attached to both sides of the panel. The completed LCD panel is then combined with a backlight unit, driver circuits, and control electronics to form a complete lcd screen module. This final assembly undergoes rigorous testing to ensure performance meets specifications before being shipped to customers.
TFT LCD Key Components and Materials
A high-performance lcd screen relies on a combination of specialized components and advanced materials, each contributing to the display's overall functionality and performance characteristics.
Thin-Film Transistors (TFTs)

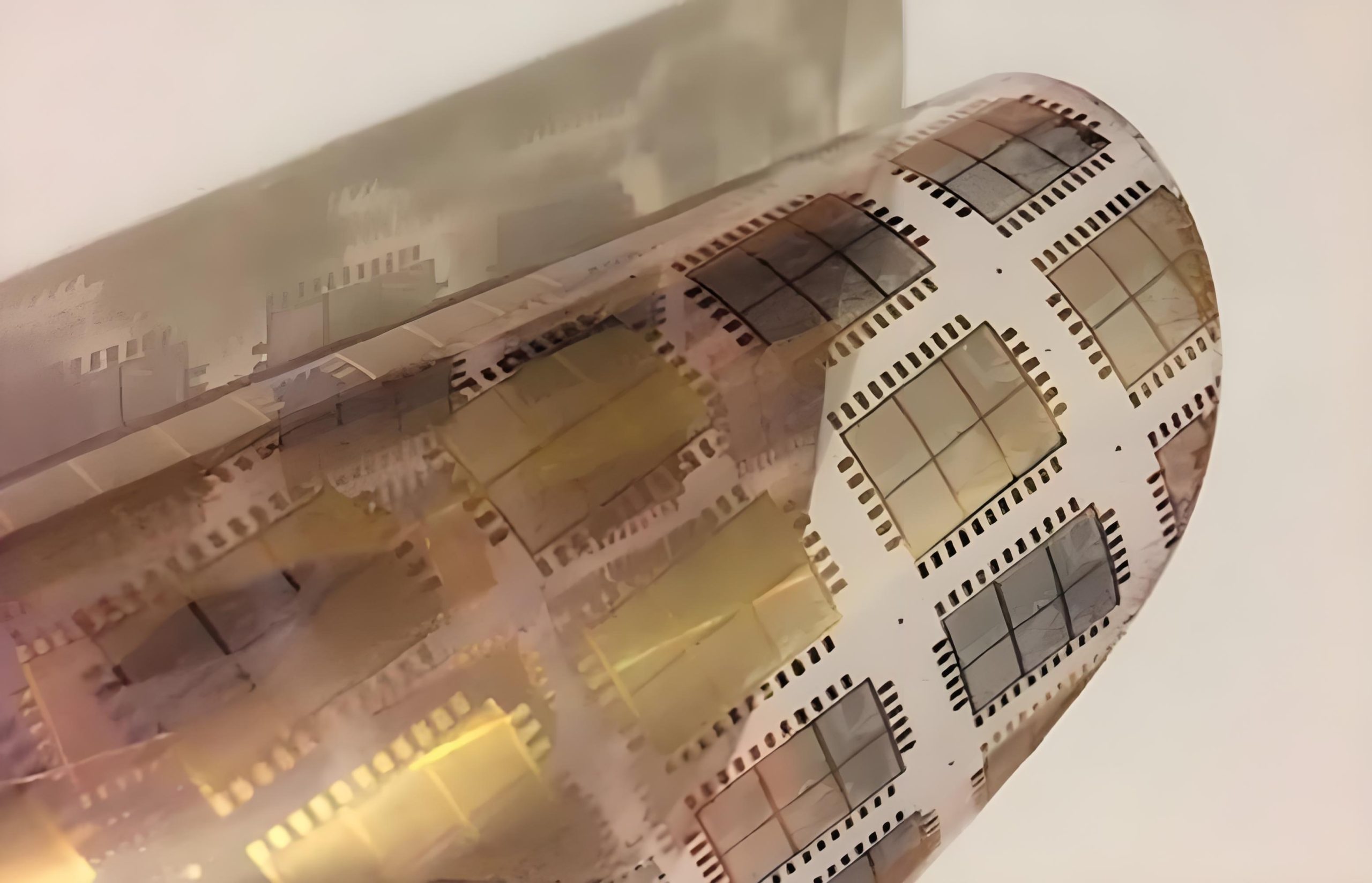

The TFT is the active switching element that controls each pixel in an lcd screen. These tiny transistors are arranged in a matrix on the glass substrate, with each controlling a single pixel.
Most modern TFTs use amorphous silicon (a-Si) due to its lower production costs, while high-performance displays may use low-temperature polysilicon (LTPS) or indium gallium zinc oxide (IGZO) for higher electron mobility and better performance.
Liquid Crystal Material
The liquid crystal material is the heart of the lcd screen, exhibiting properties of both liquids and solids. These organic compounds have rod-shaped molecules that can change orientation in response to electric fields.
Different liquid crystal mixtures are formulated for specific applications, with properties optimized for response time, operating temperature range, and optical characteristics. The material's birefringence and elastic constants determine how it interacts with light and electric fields.

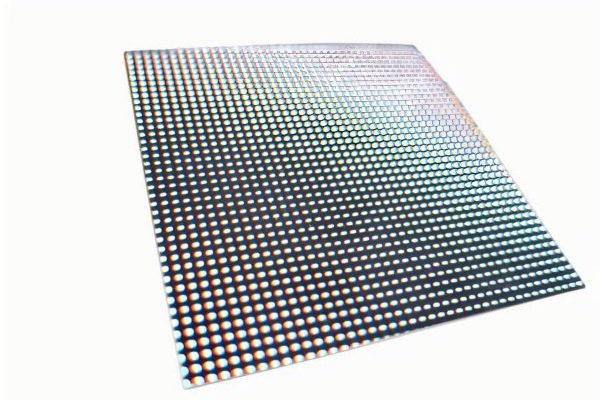

Backlight Units (BLU)
Since liquid crystals themselves do not emit light, an lcd screen requires a backlight to illuminate the display. Modern LCDs primarily use light-emitting diodes (LEDs) as their light source due to their efficiency and compact size.
Backlight designs include edge-lit systems, where LEDs are placed along the display edges with light guides distributing illumination, and direct-lit systems with LEDs arranged in an array behind the entire panel. Advanced backlights incorporate local dimming for improved contrast ratios.
Polarizers and Optical Films
Polarizing filters are essential components of an lcd screen, positioned on both sides of the liquid crystal cell. These films allow only light with a specific polarization to pass through, working in conjunction with the liquid crystals to control light transmission.
Additional optical films, such as retardation films and brightness enhancement films, are often used to improve light efficiency and viewing characteristics. These films help maximize the amount of light from the backlight that reaches the viewer while minimizing reflections.lcd screen white spot.
Color Filters

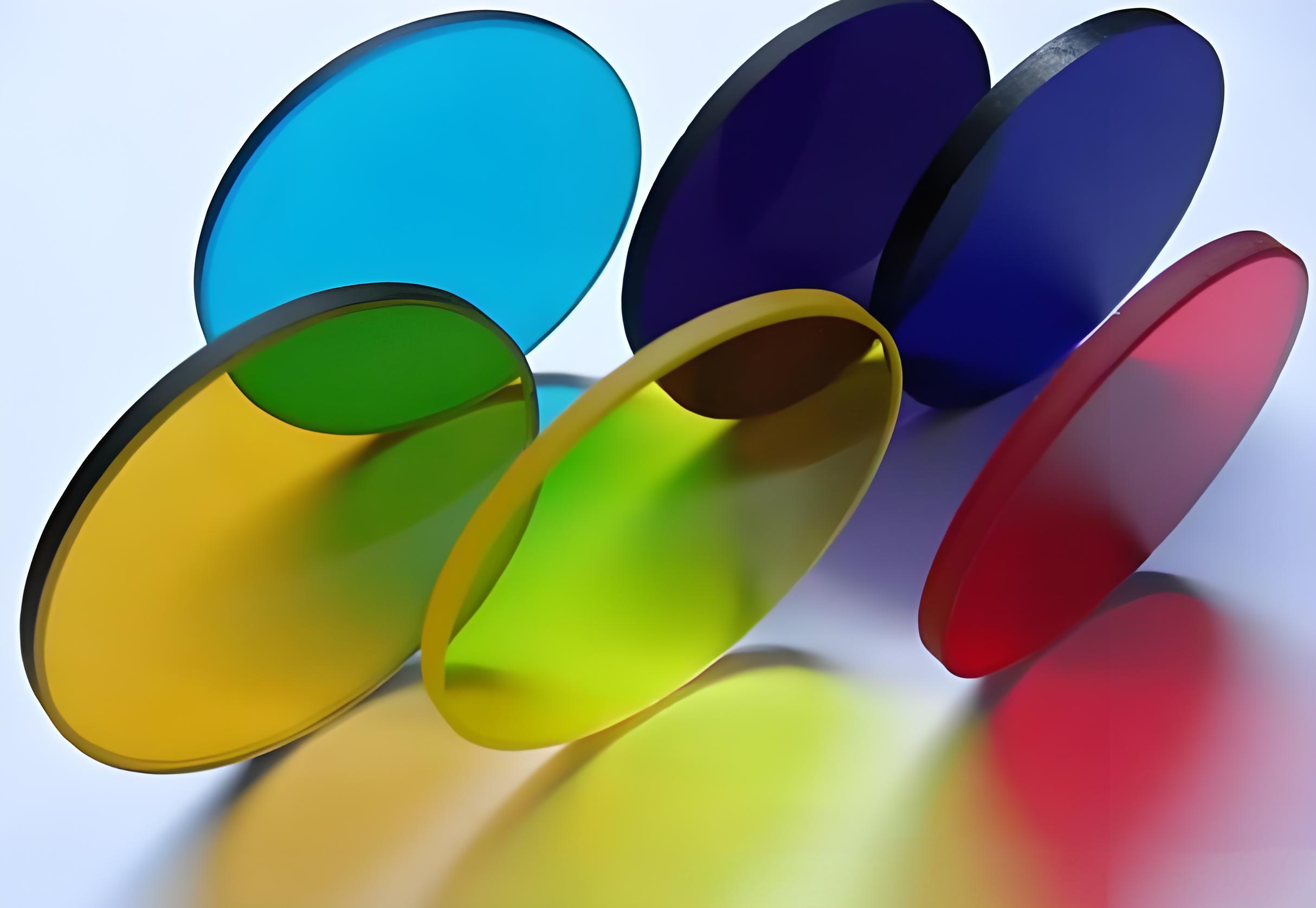

Color filters enable an lcd screen to display full-color images by filtering light into red, green, and blue components corresponding to each sub-pixel. These filters are typically made from photoresist materials doped with organic dyes or pigments.
The color filter array is precisely aligned with the TFT array to ensure each filter corresponds to the correct sub-pixel. Advanced color filter technologies have been developed to improve color gamut, transmittance, and durability, directly impacting the visual quality of the lcd screen.
Driver ICs and Electronics
Driver integrated circuits (ICs) convert digital image data into the analog voltages required to control each pixel in the lcd screen. These sophisticated chips manage the timing, data distribution, and voltage levels needed for proper display operation.
The driver electronics include both gate drivers (controlling row selection) and source drivers (controlling column data). For large displays, multiple driver ICs are typically used, connected through flexible printed circuits (FPCs) that carry signals between the main control board and the display panel.
Material Composition of Modern LCD Screens
TFT LCD Improvements and Performance Enhancements
The continuous evolution of lcd screen technology has led to significant improvements in performance, with advancements in resolution, color reproduction, response time, and energy efficiency. These enhancements have allowed LCD technology to remain competitive in the rapidly evolving display market.Cpu lcd screen animations.
One of the most notable improvements in recent years has been the increase in resolution, with 4K and even 8K displays becoming more common. Higher pixel density results in sharper images and greater detail, making the lcd screen more suitable for professional applications such as graphic design, video editing, and medical imaging where precision is critical.
Color reproduction has also seen significant advancements, with modern LCDs achieving wider color gamuts that cover more of the visible color spectrum. Technologies such as quantum dot enhancement films (QDEF) have enabled lcd screen displays to reproduce a greater range of colors, approaching the performance of OLED displays while maintaining the advantages of LCD technology.
Response time improvements have addressed one of the historical limitations of LCD technology. By developing new liquid crystal materials and optimizing driving methods, manufacturers have reduced motion blur in fast-moving content, making the lcd screen much more suitable for gaming and high-speed video applications.
Energy efficiency has been another key area of improvement, driven by the growing demand for mobile devices and environmentally conscious design. Advanced backlight technologies, including more efficient LEDs and local dimming systems, have significantly reduced power consumption while maintaining brightness levels in the lcd screen.
High dynamic range (HDR) technology has been integrated into modern LCDs, offering improved contrast ratios and a wider range of brightness levels. By combining HDR with local dimming backlights, the latest lcd screen models can produce deeper blacks and brighter highlights, creating a more immersive viewing experience that rivals traditional display technologies.
Key Performance Improvements Over Time
Future Development Areas
- Mini-LED backlights for enhanced local dimming capabilities
- Advanced quantum dot technologies for improved color performance
- Flexible and foldable LCD panels for new form factors
- Integrated touch technologies with improved responsiveness
- AI-driven adaptive display technologies for optimal viewing conditions
Applications of LCD Technology
The versatility and continuous improvement of lcd screen technology have made it the display solution of choice for a wide range of applications across various industries.
Mobile Devices
Smartphones, tablets, and wearables utilize compact, high-resolution LCD screens for their displays, offering excellent image quality in power-efficient designs.
Computer Displays

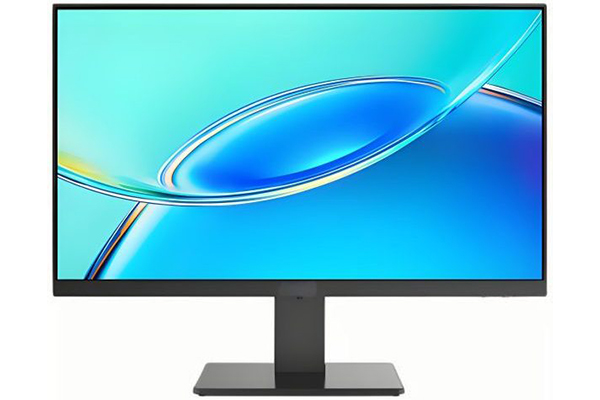

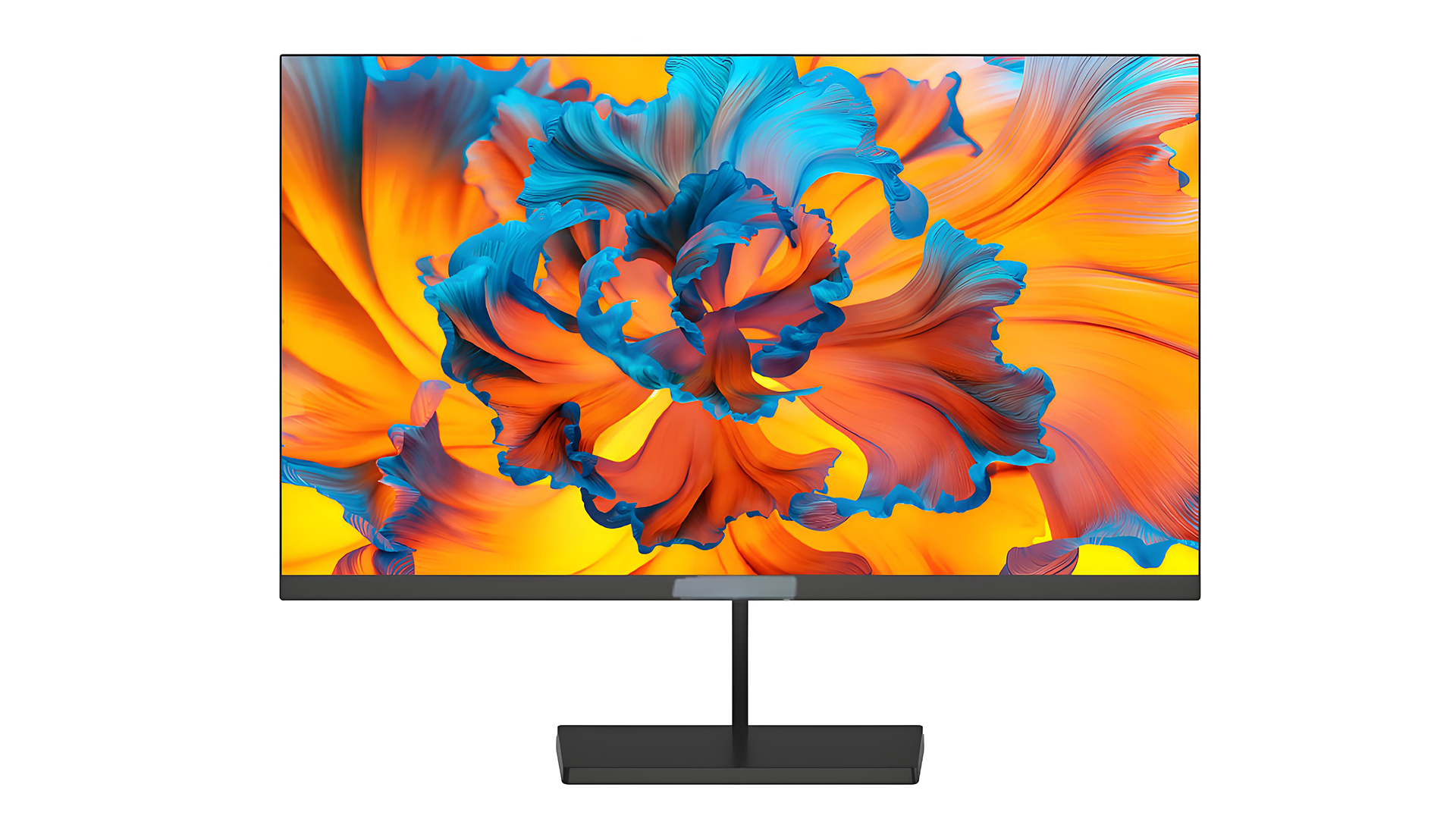

Desktop monitors and laptops rely on LCD screens for their displays, with options ranging from basic office displays to high-performance gaming monitors.

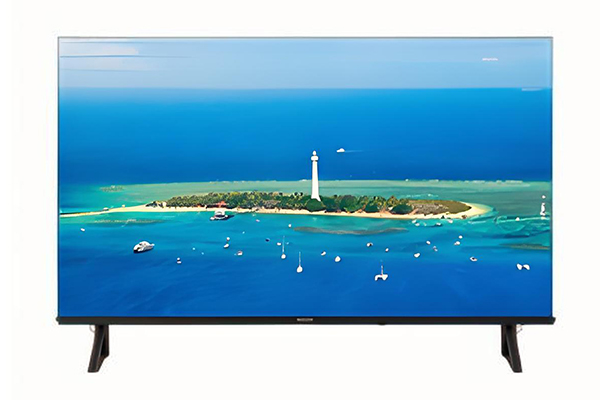

Televisions

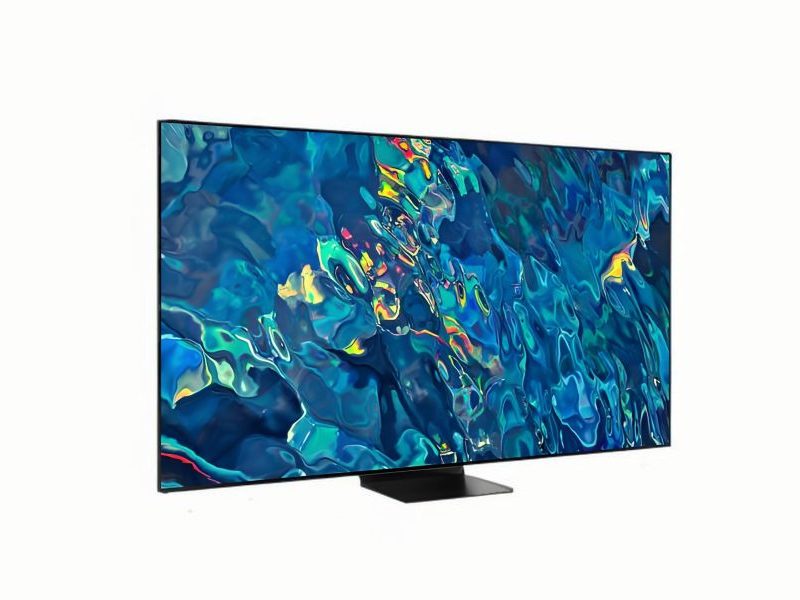

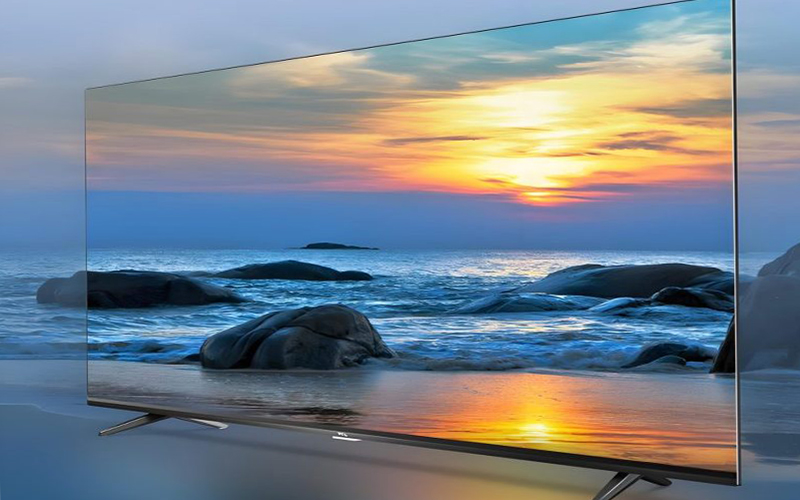

Large-format LCD screens dominate the TV market, offering 4K and 8K resolutions, HDR capabilities, and smart TV functionality in thin, energy-efficient designs.
Industrial & Medical

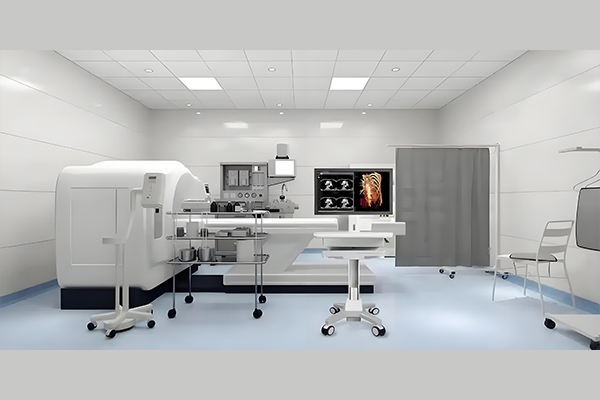

Specialized LCD screens are used in industrial control panels, medical imaging equipment, and diagnostic displays requiring high reliability and precision.
